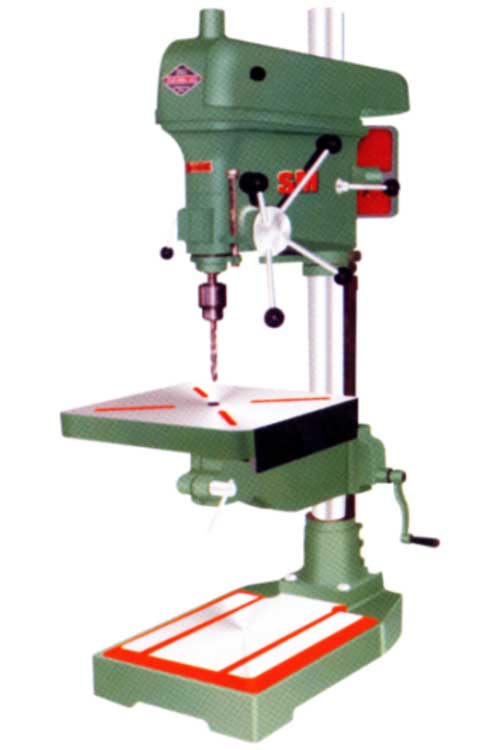

| We are engaged in manufacturing wide range of Center Pillar Drilling Machine(15 Inch) which have substantive usage in various industrial purpose. Our products are well appreciated for their features like caliber, efficiency and trust worthy. We manufacture this products according to the customers' demand and we are efficient in delivering the consignment timely. |
| SPECIFICITIONS |
| S. No |
Specifications |
SMB 3 |
| 1. |
Drilling Capacity |
20 |
| 2. |
No of spindle speeds |
8 |
| 3. |
Range of speed |
86 to 3326 |
| 4. |
Distance Between Spindle Center & Columm Face |
380 |
| 5. |
Max. Distance of spindle to base |
940 |
| 6. |
Max. Distance of spindle to work table |
495 |
| 7. |
Table Travel |
250 |
| 8. |
Spindle Travel |
125 |
| 9. |
Table Size |
405*405 |
| 10. |
Base Size |
650*382 |
| 11. |
Working surface of base |
380*470 |
| 12. |
Column Diameter |
87 |
| 13. |
Columm Height |
1500 |
| 14 |
Spindle Nose Bore |
MT - 2 |
| 15. |
Motor Recommended |
0.75KW (1 H.P.) 1440 RPM |
| 16. |
V-Belt Size |
A - 58 |
| 17. |
Weight of Machine(appx) |
225 KG |
|
| |
|
 |
|
|
